جزئیات محصول:
پرداخت:
|
Screw Head Type: | hex socket | Surface Finishing: | plain |
---|---|---|---|
Size: | M3-M8 | Class: | A2 A4 304/316 |
Sample: | For Free | HS Code: | 73181400 |
Alias: | Allen screw | Thread line: | single line |
Product: | Stainless Steel / Carbon Steel DIN914 Hex socket Allen set screws with cone point | ||
برجسته: | ,,flat head machine screw |

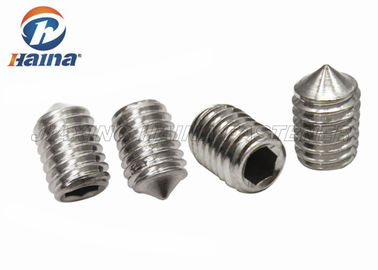

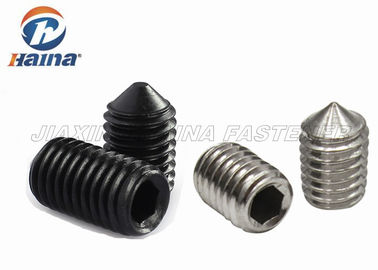

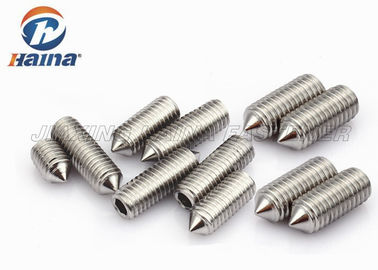

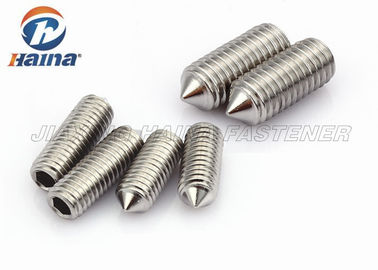

Stainless Steel / Carbon Steel DIN914 Hex socket Allen set screws with cone point
Description:
A set screw is one type of hardware designed to fasten one object inside of another. a screw for adjusting or clamping parts of a machine.The set screws prevents relative movement between the two objects, which allows each to function as intended. These screws are generally made from carbon steel , brass or stainless steel, and are designed to pass through the outer object and rest against the inner object without passing through.
A set screw is a unit of hardware designed to fasten one object inside of another. The set screw prevents relative movement between the two objects, which allows each to function as intended.
Point Selection should take in account application, holding power, frequency of setting and hardness of mating parts. The Cup Point digs part into the contact surface for maximum holding power under pressure.For longer life, set screws are usually made of alloy steel and case hardened. Hardened set screws often leave a plastic deformation, in the form of a circular or semicircular mark, in the shaft that the screw sets against. This has both pros and cons.Set screws are generally fastened using an internal mechanism rather than a traditional external head. At the top of the screw may be slotted for use with a screwdriver, or may have a hexagonal shape.
In some countries, this type of fastening device is generally known as a Grub screw rather than a set screw
Chemical Components:
Material | C | Si | Mn | P | S | Ni | Cr | Mo | Other |
201 | 0.15 | 1 | 5.5-7.5 | 0.06 | 0.03 | 3.5-5.5 | 16-18 | N≤0.25 | |
304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.0-10.0 | 18-20 | ||
304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 8.0-12.0 | 18-20 | ||
321 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.0-13.0 | 17-19 | Ti≤5*C% | |
316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.0-14.0 | 16-18 | 2-3 | |
316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 10.0-15.0 | 16-18 | 2-3 | |
309S | 0.08 | 1 | 2 | 0.045 | 0.03 | 12.0-15.0 | 22-24 | ||
410 | 0.15 | 1 | 0.03 | - | 11.5-13.5 |
Specification:
Screw Thickness | M3-M8 |
---|---|
Finish | Plain |
Material | Stainless steel |
Class | SS304/ SS316 |
Standard | DIN913 |
Screw Thread Pitch | 1.25 |
Thread Style | Coarse |
Screw Length (Millimeters) | 10-20 |
Drive | Allen Type |
Point Type | Cup-point |
Use Location | Interior/Exterior |
---|---|
Materials Fastened | Metal to metal |
Finish | Plain |
Material | Stainless steel |
Related Product:
DIN551,DIN553,DIN926,DIN438,DIN913,DIN914,DIN915,DIN916,DIN478, DIN479,DIN561,DIN564,DIN922,DIN94,DIN925,DIN6332,
Advantages:
1) Prompt delivery
2) High quality in competitive price
3) Various types of long- term supply professinal stainless steel screws
