Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish

Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish
Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish

تصویر بزرگ :  Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish

جزئیات محصول:

محل منبع: Zhejiang, China (Mainland)
نام تجاری: HNF
گواهی: ISO9001
شماره مدل: DIN

پرداخت:

مقدار حداقل تعداد سفارش: 30000 pcs
قیمت: Negotiation
جزئیات بسته بندی: Carton and Pallet or Customize Packing
زمان تحویل: 15-20days
شرایط پرداخت: L/C, T/T, Western Union
قابلیت ارائه: 650 ton per month
توضیحات محصول جزئیات
Product Name: Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish Material: C1008 Steel
Advantage: Resists Loosening under Vibrations Thread: Coarse Thread
Thread Size: M16 Pitch: 2.0mm
Grade: Gr.4.8 Finish: Color Zinc Plated
برجسته:

Carbon Steel Nuts,Hex Flange Nuts

,

Hex Flange Nuts

Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish





1.Product Description



A Nylon Insert Hex Flange nut is a kind of Nylon lock nut, which is known as a lock nut, locking nut, prevailing torque nut, stiff nut or elastic stop nut, is a nut that resists loosening under vibrations and torque. Elastic stop nuts and prevailing torque nuts are of the particular type where some portion of the nut deforms elastically to provide a locking action. Lock nuts, jam nuts, lock washes and thread-locking fluid are ways to prevent vibration from loosening a bolted joint. The nylon insert have various colors and is supplied with zinc plated finish. Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts.  A hex flange nut with a nylon filled in it. When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. However, nylon will begin to damaged at temperatures from 150-350 degree centigrade. They allow for a rapid assembly process, thereby increasing process throughput and reducing assembly costs. Be used to construction, machinery construction and other branches. It can be used with bolts,screws and other fasteners without spring and lock washer. The flange povides a reduction of pressure on the surface and special notches give extra tighten torque. This kind of connection has a very high fastness.



2. Specification



Diameter Pitch Height opposite side Flange Dia. Flange Thickness
M16 2.0mm 24mm 24mm 31mm 5mm



More details:



Product Dimensions M16x2.0
Item Weight 71.5kg 1000 pieces
Surface Treatment Zinc Plated
Free Sample Available, shipping need to be charged only
Thread type Coarse Thread
Advantages

Resists Loosening under Vibrations



3.Application



Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts.General Fastening applications where need high strength and superior corrosion resistance. For the joining process required pressure is usually applied manually by the operator or by the machine.



4.Advantages



When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.



5.More pictures

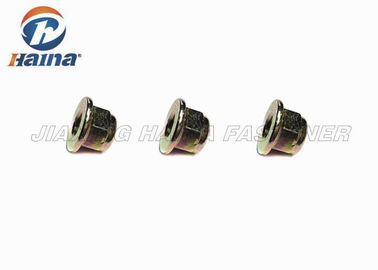

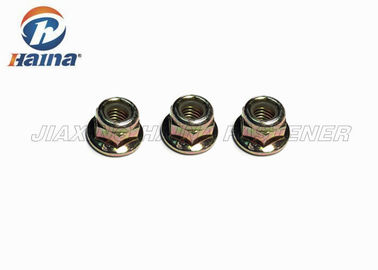

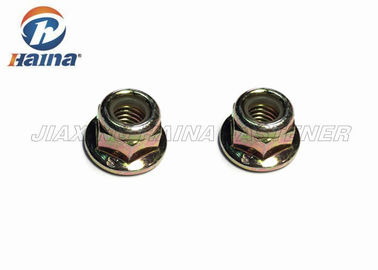

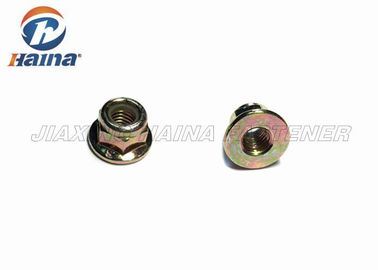

Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish 0Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish 1
