Name: | ASTM A194 Grade 2H Heavy nut Hardened and Tempered hex head black surface nut | Size: | 1/2 " -- 3" |
---|---|---|---|
Material: | A194 | Production Process: | Cold forging or Hot Forging |
Standard: | DIN934 ISO4032 DIN439 | HS CODE: | 731816 |
Class: | Grade 2H | Finish: | Black |
برجسته: | Heavy Hex Nut,Hex Flange Nuts,Hex Flange Nuts |

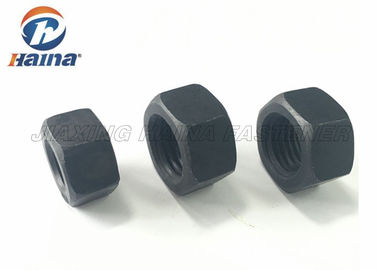

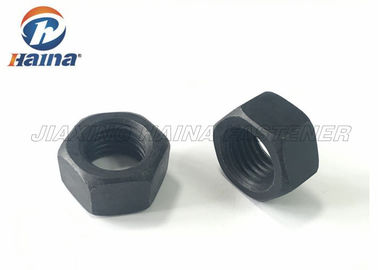

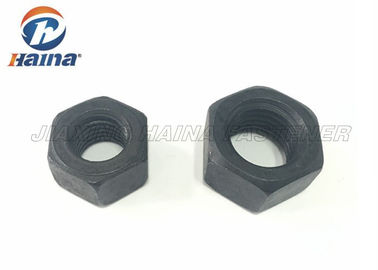

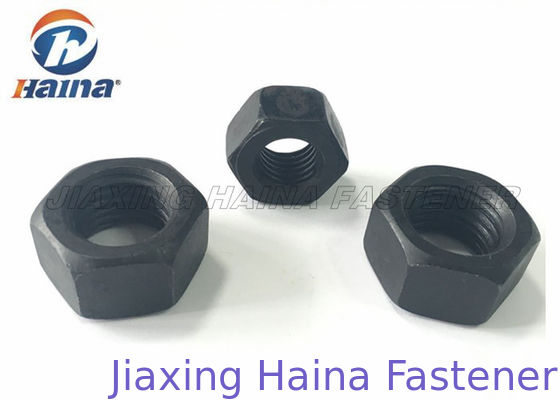

ASTM A194 Grade 2H Heavy nut Hardened and Tempered hex head black surface nut
Hex nut (Hexagon nut) used with bolt, screw, connecting the fastening parts.Hexagon nuts according to the nominal thickness is divided into type I and type II and three thin.More than 8 nut is divided into two type type I and type II.
Nuts to be used on bolts with Class 2A threads before hot-dip zinc coating ,and then hot-dip zinc coated in accordance with Specification F2329, shall be tapped oversize after coating, to the minimum and maximum thread dimensions in Table 5. The major and minor diameters shall also be increased by the allowance to provide the corresponding minimum and maximum major an minor diameter.
Nuts to be used on bolts mechanicalll zinc coated or on bolts hot-dip zinc coated to a specification other than specification F2329 , or otherwise got dip coated ,shall be tapped oversize by a diametral amount sufficient to permit assembly on the coated bolt thread , unless other requirements are specified in the inquiry or purchased the orders.
This ASTM F594 specification covers the requirements for stainless steel nuts 0.25 to 1.50 in., inclusive, in nominal diameter in a number of alloys steel in common use and intended for service applications requiring general corrosion resistance
It always used with A193 B7 /B7M stud bolt and A194 Gr2 2H heavy nut in the many exposed
to adverse marine or coastal environments.
When additional tests are specified in the inquiry and purchase order in a lot for purposes of selecting test samples , shall consist of all material offered for inspection at one time that has the following common characteristics.
We are very competive on this nut . If you have any questions,Please contact me by email : me@hainafastener.com
Specification:
Products name | ASTM A194 Grade 2H Heavy nut Hardened and Tempered hex head black surface nut | ||||||
Type | Hex Head Nuts | ||||||
Standard: | A194 Grade 2H | ||||||
Material | Alloy steel | ||||||
Finishing |
Black Oxide, |
||||||
Used with | A193 B7 / B7M stud bolt | ||||||
Leading time | About 15-25 days. Reality time is according to customer's requirement |
Application
Mostly used for large heavy engineering, for example, ocean engineering, petroleum engineering, gas engineering, etc.
More Pictures
Advantages:
1. Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers’ specification and performance.
2. Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
3. Cost effective: Competitive prices with professional factory supply Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection.
