|Place of Origin:||China|
|Model Number:||F5201, F5202, F5203, F5204, F5205|
|Minimum Order Quantity:||900kgs|
|Packaging Details:||Common export packing. Cartons+Pallets, or customized packing|
|Delivery Time:||10-25 days|
|Payment Terms:||L/C, T/T, Paypal|
|Supply Ability:||500 tons per month|
|Product:||T bolt||Head Drive:||T Head Hammer Head|
|Mold No.:||F5201, F5202, F5203, F5204, F5205||Surface:||Zinc Plated|
|Specification:||M8||Grade:||Gr4.8 Gr8.8 Gr2 Gr5|
|Hammer Head Screw:||Groove 8 for 40s||Technique:||Cold Heading|
|Material:||Carbon steel||HS Code:||7318159090|

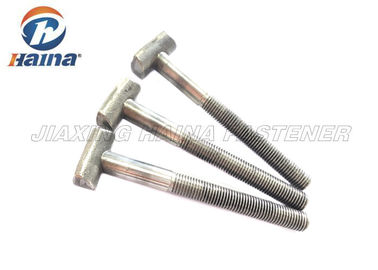

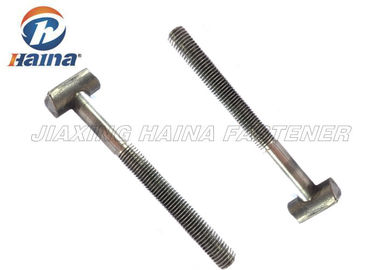

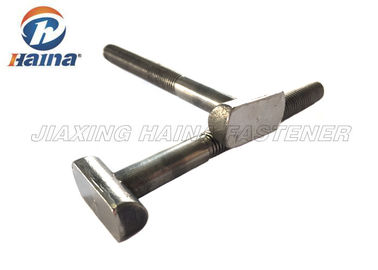

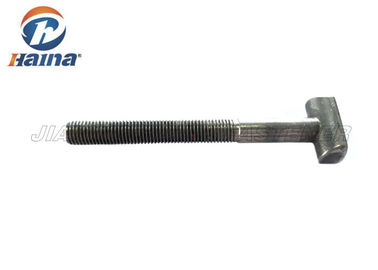

Plain Finish Class 8.8 T-Bolt Hammer Head T-Bolt Custom Fasteners for Railway
Customized T Bolts Custom Fasteners is special bolt. The head is in T type. It is different with hex head bolt in shape. But in application, they are almost same. It also has different sizes and stabdards. We can produce as customer's drawing.
Bolt is a mechanical parts, which is a threaded fasteners with a cylindrical nut. Consisting of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole. This connection type called bolt connection. As to unscrew the nuts from the bolts, but also so that the two parts separate, it bolted belongs detachable connection. We can provide customs fasteners according to drawing and samples.
T bolts are used on track line and rail way. As a holistic engineering structures, track laying play a guiding role on train. The fasteners directly bear the enormous pressure of the load. Trains run in the power of its individual components must have sufficient strength and stability to ensure that the train in accordance with a predetermined maximum speed, safe, stable and uninterrupted operation.
We can manufacture various high quality fasteners which meet the GB, DIN, ANSI, JIS and ISO standard. Also we support customized and can also manufacture non-standard fasteners according to drawing.
|Product name||Plain Finish Class 8.8 T-Bolt Hammer Head T-Bolt Custom Fasteners for Railway|
|Materials Available||1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420|
|2. Steel:C45(K1045), C46(K1046),C20|
|3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)|
|4. Bronze: C51000, C52100, C54400, etc|
|5. Iron: 1213, 12L14,1215|
|6. Aluminum: Al6061, Al6063|
|7.OEM according to your request|
|Test Equipments:||Cutting machine, automatic pre- milling machine, polishing machin, hard-testing gauge(Vickers), metallography microscope, electrolytic thickness gauge, tensile testing machine, salt spray device, magnetic detection machine(magnetic particle flaw detector), Caliper, Go&No-go gauge and etc.|
|Supply Ability:||2000 tons per month|
|Payment||T/T, L/C , Western Union , paypal|
|Market:||South&north Amrica/Europe/East&South east Asia/ Australia and Africa etc.|
|Our advantage:||One-stop service;
On time delivery;
Material and Test Reports.
|Notice:||Please give us the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Picturesor Samples to us|
The T bolt is consist of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole.
Bolt is possible as a railway accessories, railway accessories. Bolts are part of the railway line, the track referred to herein include rails, sleepers, connecting parts, the track bed, anti-climbing equipment, track and switches and other support.
The attachment of component at the adjustable groove assembly spot on the profile bar. After attaching to the profile, the screw ensures an optimum high-strength connection.
1. Used for profile 30 series, Groove 8, Thread: M6, L=12/16/20/25mm
2. Used for profile 40 series, Groove 8, Thread: M8, L=20/25/30/35/40mm
3. Uesd for profile 45 series, Groove 10, Thread: M8, L=20/25/30/35/40mm
The T head bolts are be used in connecting.
1. Manufacturing Capability
2. Global Market
3. Custom Fasteners
5. Quick Delivery
6. One stop service
7. Anti-rust and erosion-resistance.
